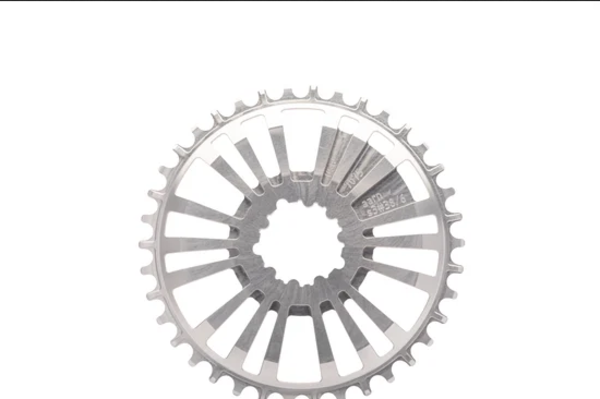

AARN s3 1x Direct Mount Chainring

Details
*Please note: We keep very little inventory of AARN products, BUT we can special order them for you! Give us a call at 781-391-3636 to inquire about availability.
_____
Designed right here in Medford, these 1x direct-mount 12-speed rings feature a unique tooth profile designed for maximum engagement and minimal wear. The double-chamfer wide teeth provide quiet and smooth tooth re-engagement at maximum chainline angle, and the beveled transition out of the narrow pocket promotes dirt clearance in the toughest conditions. Manufactured in Washington, USA, from certified 7075-T6 aluminum plate stock. These chainrings are fully CNC machined. All edges (front and rear) are machine broken with a 45-degree 0.010-in deep chamfer. Product is packaged in a custom letterpress printed envelope.
Technical Details:
+Bolt Circle Diameter: Direct Mount SR4M GXP/GX/DUB/ETC (3 bolt)
+Number of Teeth: 28 (boost 3mm offset), 32 (boost 3mm offset), 38 (road/gravel 6mm offset), 44 (road/gravel 6mm offset)
+Supported Chain Type: Up to 12-speed (1x9 through 1x12), not for use on double or triple chainring set-ups.
+Chainline Offset: 3mm/boost and 6mm/road depending on tooth count
+Material: Anodized 7075-T6 Aluminum
+Finish: Black and Clear Anodize with Acid Washed Application
Videos
Ever wonder how AARN come about?
Part Numbers
Option | Store SKU |
---|---|
SRAM 3-Bolt DM / Silver / 3mm (Boost & SuperBoost+) / 28t | |
SRAM 3-Bolt DM / Silver / 3mm (Boost & SuperBoost+) / 32t | |
SRAM 3-Bolt DM / Silver / 6mm (Gravel) / 32t | |
SRAM 3-Bolt DM / Silver / 6mm (Gravel) / 38t | |
SRAM 3-Bolt DM / Black / 3mm (Boost & SuperBoost+) / 28t | |
SRAM 3-Bolt DM / Black / 3mm (Boost & SuperBoost+) / 32t | |
SRAM 3-Bolt DM / Black / 6mm (Gravel) / 32t | |
SRAM 3-Bolt DM / Black / 6mm (Gravel) / 38t | 210000076154 |
SRAM 3-Bolt DM / Limited Edition Acid Fade / 3mm (Boost & SuperBoost+) / 28t | 210000076152 |
SRAM 3-Bolt DM / Limited Edition Acid Fade / 3mm (Boost & SuperBoost+) / 32t | 210000076150 |
SRAM 3-Bolt DM / Limited Edition Acid Fade / 6mm (Gravel) / 32t | |
SRAM 3-Bolt DM / Limited Edition Acid Fade / 6mm (Gravel) / 38t |
