Pivot Cycles Vault Frameset

Pivot Cycles Vault Frameset
Image differs from actual product (complete bike shown)
  • Image differs from actual product (complete bike shown)
  • Image differs from actual product (complete bike shown)
Please select options
Sorry, this item is currently not available. Please contact us for availability.


Bring speed and versatility to your gravel quest with the all-new Pivot Vault. Massive tire clearance, pro-caliber power transfer, and ride tuned frame compliance come together for the fastest thing to ever hit backcountry roads. Patent pending ISO FLEX technology allows you to fine tune your ride and comfortably lay down the watts over the roughest washboard. Say “Hello” to the new realm of the multi-dimensional drop bar road bike. Say “Hello” to the all-new Pivot Vault.

- Next-generation cross/gravel/road geometry – works for any surface
- Gobs of tire clearance and 1x or 2x drivetrain compatible
- Clears sub-compact chainrings, traditional road gearing and 1x systems with clearance for crank arm based power meters
- Removable FD mount with integrated cover
- Fits up to 700 X 47C and 650b x 2.0” tires
- Patent pending ISO FLEX Technology fits 27.2 or 30.9 seatposts and isolates the seatpost from the frame for extraordinary comfort with uncompromising frame stiffness and control
- Internal cable routing for all lines including stealth style dropper posts via Pivot’s easy to service and silent Cable Port System
- Top tube bag mounts to fuel the longest rides
- Hidden fender mounts for a clean, sleek appearance and all weather versatility
- Full carbon frame featuring proprietary hollow core internal molding technology for a high stiffness to weight ratio
- Optimized layup structure with ideal top tube and stay shaping for comfort and power output on long rides, rough roads and epic adventures
- BB386EVO bottom bracket substantially increases torsional rigidity, strength and power transfer, while providing increased rear tire clearance
- Frame weight: 998 grams
- Available as a complete bike or as a frame/fork/headset

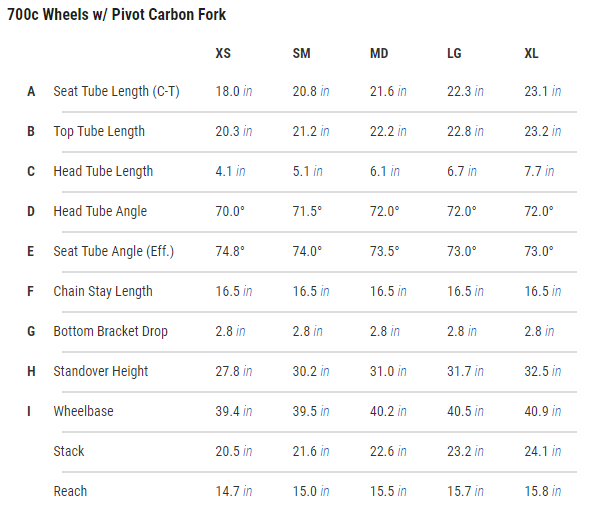

Sizes XS, S, M, L, XL for riders between 5' (152cm) and 6'5" (196cm)


Frame Pivot Vault
Fork Pivot Vault Carbon Disc
Headset Pivot Precision Sealed Integrated Cartridge
Bottom Bracket BB386EVO

* Subject to change without notice.

Part Numbers

Option MPN
Blue / X-Small 00VLTV4---FRM--BLUXS---HN
Blue / Small 00VLTV4---FRM--BLUSM---HN
Blue / Medium 00VLTV4---FRM--BLUMD---HN
Blue / Large 00VLTV4---FRM--BLULG---HN
Blue / X-Large 00VLTV4---FRM--BLUXL---HN
Sand Storm / X-Small 00VLTV4---FRM--SSTXS---HN
Sand Storm / Small 00VLTV4---FRM--SSTSM---HN
Sand Storm / Medium 00VLTV4---FRM--SSTMD---HN
Sand Storm / Large 00VLTV4---FRM--SSTLG---HN
Sand Storm / X-Large 00VLTV4---FRM--SSTXL---HN
