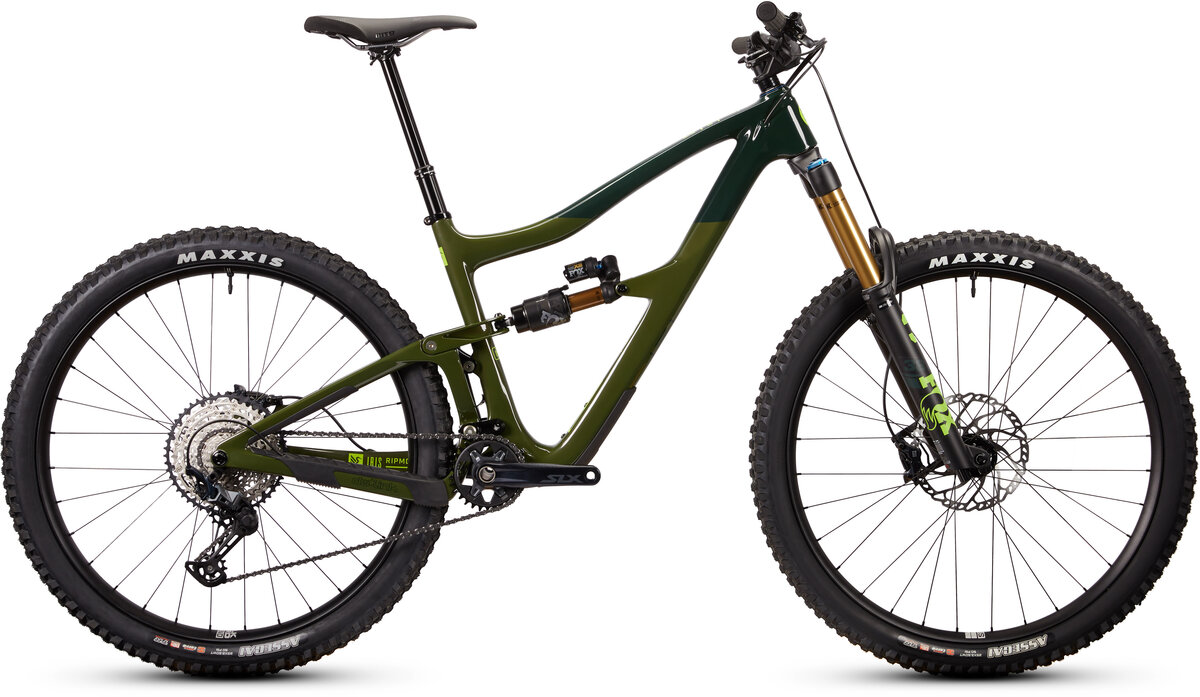

Ibis Ripmo SLX DVO Jade X w/ Carbon Wheels

Ibis Ripmo SLX DVO Jade X w/ Carbon Wheels
  • Color: Bruce Banner
  • Color: Enduro Cell
$8,098.00
Color:
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
Sorry, this item is currently not available. Please contact us for availability.

Details

What if we took everybody's favorite bike and made it a little slacker and little longer? Hell, what if we made it more progressive and coil compatible? And that's exactly what we did for the Ripmo V2S. Active ingredients include: 29" wheels, berm-defying cornering tendencies, and a love for long rides.

GEOMETRY
The Rip­mo and Rip­mo AF share the same steep, 76-degree seat tube angle and a rangy but not stratos­pher­ic reach, which places rid­ers cen­tral­ly over the ped­als. It makes for an effi­cient posi­tion that can go the long haul. The slack 64.9 head­tube angle and 44mm reduced-off set fork doesn't wan­der while climb­ing, and doesn't hold you back descend­ing. It works - all day up, all day down, all day in between.

REVISED SWINGARM
The Rip­mo V2S fea­tures a new UDH dérailleur for max­i­mum future com­pat­i­bil­i­ty and moves to a 55mm chain line. The wider chain line allows for a stiffer chainstay.

TRACTION TUNE
Our cus­tom tuned front and rear sus­pen­sion fea­ture extra light high-speed com­pres­sion and rebound damp­ing to deliv­er unpar­al­leled trac­tion. This allows the wheels to flut­ter through ter­rain like a tro­phy truck storm­ing through a set of whoops.

COIL COMPATIBLE
The Rip­mo V2S is com­pat­i­ble with both coil and air shocks due to a more pro­gres­sive lever­age rate. On the trail, it gives the sus­pen­sion a sup­ple feel through­out the entire­ty of the stroke, enhanc­ing trac­tion no mat­ter how deep you dig.

DROPPER POST CLEARANCE
Mo' drop­per, mo' bet­ter. On small frames, you can run 125 - 150mm, pend­ing your pref­er­ence and inseam length. Our short­er seat-tube lengths and low stan­dovers allow you to choose your size based on your reach preference.

TIRE CLEARANCE
You can run over­built, chunky tires; you can run light, big vol­ume fast tires, but what­ev­er you run, know that you're not lim­it­ed by width.

BUSHINGS
Tired of hit­ting "pur­chase" on anoth­er set of bear­ings each sea­son? So were we. That's why we use bush­ings where they make sense, and bear­ings where they don't. The IGUS bush­ings in our low­er link are lighter, stiffer, and vir­tu­al­ly main­te­nance free. We believe so strong­ly in them, we back them with a free life­time replacement.

LIGHTWEIGHT PREMIUM CARBON FOR EVERYONE
All our bikes are built from the high­est grade mate­ri­als and opti­mized for the best strength, weight, stiff­ness, and ride per­for­mance - no mat­ter how much you spend. The Rip­mo weighs a svelte 6.25 lbs with a DPX2 shock and com­plete builds start at 28 lbs.

INTERNAL CABLE ROUTING
Bikes that look pret­ty on the out­side, should look pret­ty on the inside. We use car­bon fiber tubes mold­ed with­in each frame. Push the cable in, watch it pop out, a beau­ti­ful moment indeed.

REMOVABLE ISCG MOUNT
So, you're too fast for nar­row-wide chain reten­tion on its own? Chal­lenge accept­ed. Our remov­able ISCG tabs allow shred­ders to bolt on a chain guide, while the rest of us can shave grams.

PROTECT YOUR INVESTMENT
A thick rub­ber down­tube pro­tec­tor deflects debris, while our chain­stay pro­tec­tor fea­tures thick raised sec­tions to help damp­en chain slap noise. And our sim­ple-yet-ele­gant link­age pro­tec­tors stop mud and rocks thrown by the tire, keep­ing your beau­ti­ful bike beautiful.

- Image is representational and may differ from build spec

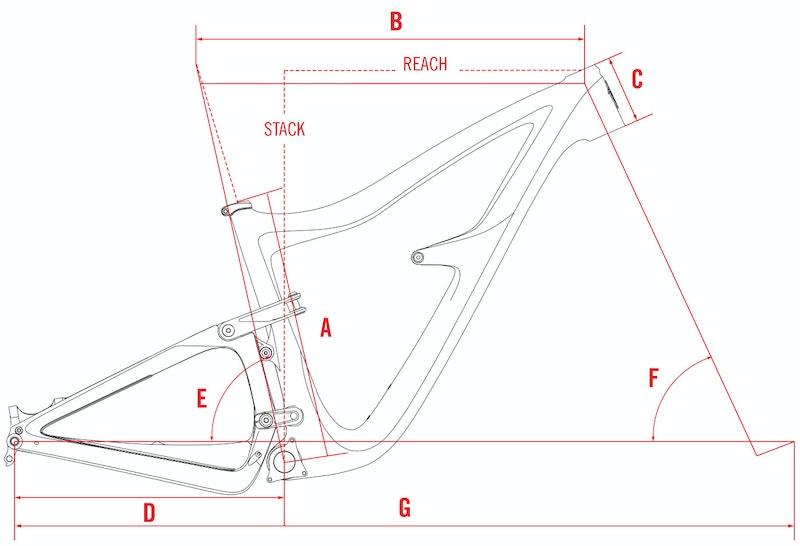

Geometry

Sizes:
NOMINAL SIZE SMALL MEDIUM LARGE X-LARGE
Seat Tube Length A 368 406 432 483
Top Tube Length B 573 603 632 655
Head Tube Length
(4mm stack of lower cup not included)
C 90 100 110 120
Chainstay Length D 435 435 435 435
Seat Tube Angle E 77° 77° 76° 76°
Head Tube Angle F 64.9° 64.9° 64.9° 64.9°
Wheelbase G 1187 1219 1238 1267
BB Height
(with 2.5 Maxxis Minions)
341 341 341 341
BB Drop 30 30 30 30
Stack 609 619 628 640
Reach 433 460 475 500
Standover 703 733 740 752
Trail 125 125 125 125
Fork Offset 44 44 44 44
Saddle height for seat tube angle 650 720 750 807
Sizes:
Small5'0"–5' 4"
Medium5'4"–5' 8"
Large5'7"-6'1"
X-Large6'–6'5"

Specs

Pedals Sold Separately
Fork Fox Float 38 Factory
Hubs Industry 9 Hydra
Rims Ibis S35 Carbon
Stem Ibis 31.8mm, S/M: 40mm, L: 50mm, XL: 60mm
Chain Shimano SLX M7100
Frame Ibis Ripmo V2S
Tires Front/Rear: Maxxis Assegai EXO + WT 29" x 2.5"
Brakes Shimano SLX M7120 4p
Rotors Shimano RT800 203/180mm
Saddle WTB Silverado 142
Spokes Sapim CX-Ray
Wheels Ibis Carbon
Headset Cane Creek 40 ZS44/ZS56
Crankset Shimano SLX M7100 24mm spindle, S/M: 170mm, L/XL: 175mm
Seatpost Bike Yoke Revive Dropper, S: 125mm, M: 160mm, L: 185mm, XL: 213mm
Shifters Shimano SLX M7100
Chainrings 30t alloy
Handlebars Ibis Carbon
Rear Shock DVO Jade X 600
Tape/Grips Lizard Skin Charger Evo
Brake Levers Shimano SLX M7100
Bottom Bracket Shimano SM BB52
Rear Derailleur Shimano SLX M7100 Shadow Plus
Cassette/Freewheel Shimano SLX, 10-51T

* Subject to change without notice.

Part Numbers

Option UPC MPN
Bruce Banner / Small / 29-inch 840345301826 RMC1OLOSXLG35
Bruce Banner / Small / 29-inch 840345301826 RMC1OLOSXLG35
Bruce Banner / Small / 29-inch 840345301819 RMC1OLOSXI935
Bruce Banner / Small / 29-inch 840345301819 RMC1OLOSXI935
Enduro Cell / Small / 29-inch 840345301604 RMC1CHOSXLG35
Enduro Cell / Small / 29-inch 840345301604 RMC1CHOSXLG35
Enduro Cell / Small / 29-inch 840345301598 RMC1CHOSXI935
Enduro Cell / Small / 29-inch 840345301598 RMC1CHOSXI935
Enduro Cell / Medium / 29-inch 840345302045 RMC2CHOSXLG35
Enduro Cell / Medium / 29-inch 840345302045 RMC2CHOSXLG35
Enduro Cell / Medium / 29-inch 840345302038 RMC2CHOSXI935
Enduro Cell / Medium / 29-inch 840345302038 RMC2CHOSXI935
Bruce Banner / Medium / 29-inch 840345302267 RMC2OLOSXLG35
Bruce Banner / Medium / 29-inch 840345302267 RMC2OLOSXLG35
Bruce Banner / Medium / 29-inch 840345302250 RMC2OLOSXI935
Bruce Banner / Medium / 29-inch 840345302250 RMC2OLOSXI935
Bruce Banner / Large / 29-inch 840345302700 RMC3OLOSXLG35
Bruce Banner / Large / 29-inch 840345302700 RMC3OLOSXLG35
Bruce Banner / Large / 29-inch 840345302694 RMC3OLOSXI935
Bruce Banner / Large / 29-inch 840345302694 RMC3OLOSXI935
Enduro Cell / Large / 29-inch 840345302489 RMC3CHOSXLG35
Enduro Cell / Large / 29-inch 840345302489 RMC3CHOSXLG35
Enduro Cell / Large / 29-inch 840345302472 RMC3CHOSXI935
Enduro Cell / Large / 29-inch 840345302472 RMC3CHOSXI935
Enduro Cell / X-Large / 29-inch 840345302922 RMC4CHOSXLG35
Enduro Cell / X-Large / 29-inch 840345302922 RMC4CHOSXLG35
Enduro Cell / X-Large / 29-inch 840345302915 RMC4CHOSXI935
Enduro Cell / X-Large / 29-inch 840345302915 RMC4CHOSXI935
Bruce Banner / X-Large / 29-inch 840345303141 RMC4OLOSXLG35
Bruce Banner / X-Large / 29-inch 840345303141 RMC4OLOSXLG35
Bruce Banner / X-Large / 29-inch 840345303134 RMC4OLOSXI935
Bruce Banner / X-Large / 29-inch 840345303134 RMC4OLOSXI935
