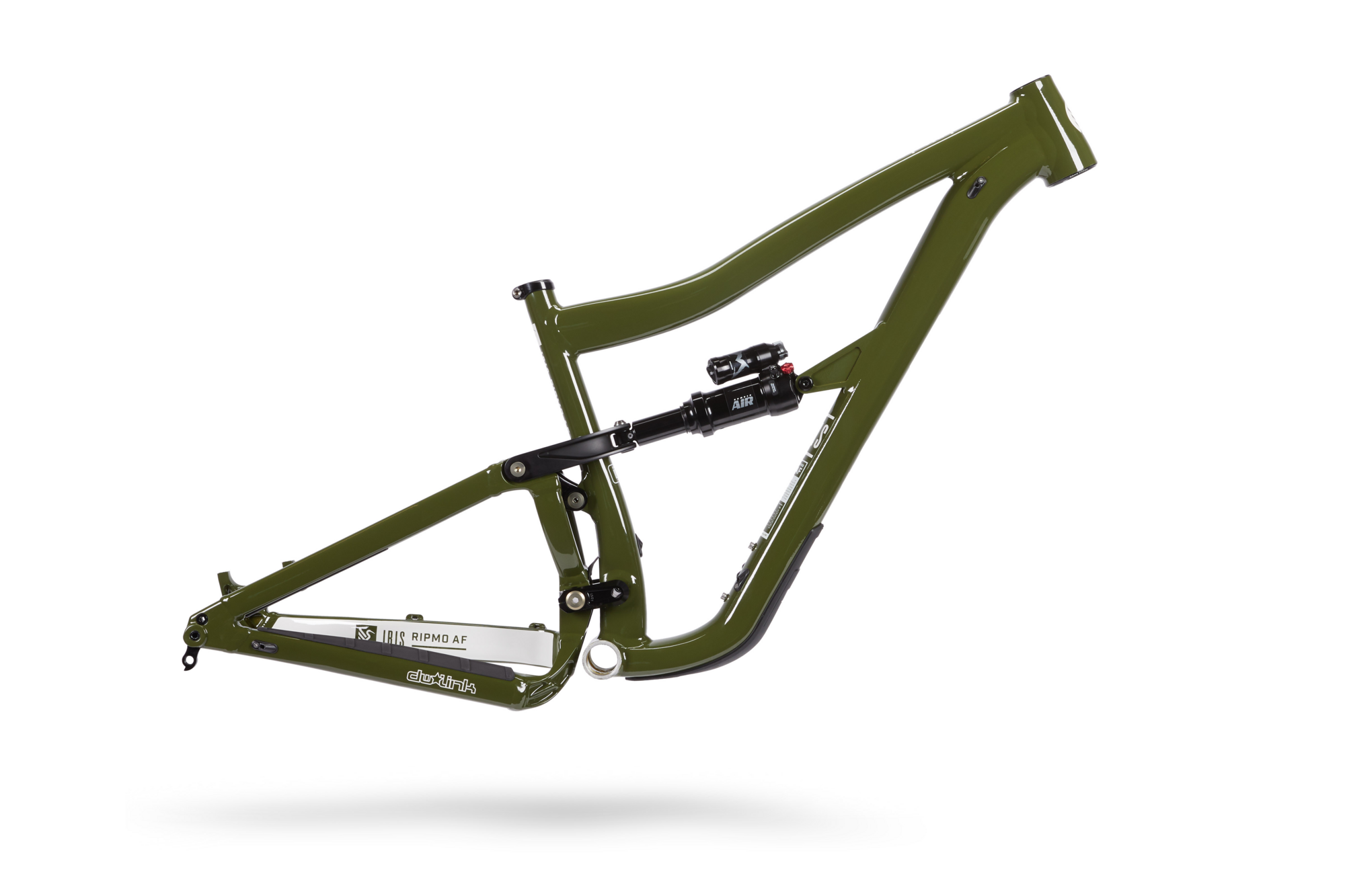

Ibis Ripmo AF Frameset
$2,199.00
Details
The Ripmo AF (Aluminum Frame) brings the award-winning performance of the carbon Ripmo to a wider, rowdier audience. It’s everything we love from the carbon Ripmo, plus a few tweaks.
| NOMINAL SIZE | SMALL | MEDIUM | LARGE | X-LARGE | |
|---|---|---|---|---|---|
| Seat Tube Length | A | 368 | 380 | 432 | 483 |
| Top Tube Length | B | 573 | 603 | 632 | 655 |
| Head Tube Length (4mm stack of lower cup not included) |
C | 90 | 100 | 110 | 120 |
| Chainstay Length | D | 435 | 435 | 435 | 435 |
| Seat Tube Angle | E | 77° | 76° | 76° | 76° |
| Head Tube Angle | F | 64.9° | 64.9° | 64.9° | 64.9° |
| Wheelbase | G | 1185 | 1216 | 1237 | 1262 |
| BB Height (with 2.6 Schwalbe Nobby Nicks) |
341 | 341 | 341 | 341 | |
| Stack | 613 | 620 | 629 | 642 | |
| Reach | 431 | 458 | 475 | 495 | |
| Standover | 705 | 750 | 750 | 760 | |
| Trail | 114 | 114 | 114 | 114 | |
| BB Drop | 30 | 30 | 30 | 30 | |
| Saddle height for seat tube angle | 650 | 700 | 750 | 810 |
| Small | 152-165cm |
|---|---|
| Medium | 163-175cm |
| Large | 173-185cm |
| X-Large | 183-198cm |
Specs
| Frame | Ibis Ripmo AF |
|---|---|
| Rear Shock | Marzocchi Bomber Air |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Dank Avocado / Small / 29-inch | 840345301338 | RMA1OL0000000 |
| Dank Avocado / Large / 29-inch | 840345301376 | RMA3OL0000000 |
| Dank Avocado / X-Large / 29-inch | 840345301390 | RMA4OL0000000 |
| Dank Avocado / Medium / 29-inch | 840345301352 | RMA2OL0000000 |
| Charcoal Grill / X-Large / 29-inch | 840345301383 | RMA4BK0000000 |
| Charcoal Grill / Large / 29-inch | 840345301369 | RMA3BK0000000 |
| Charcoal Grill / Medium / 29-inch | 840345301345 | RMA2BK0000000 |
| Charcoal Grill / Small / 29-inch | 840345301321 | RMA1BK0000000 |
