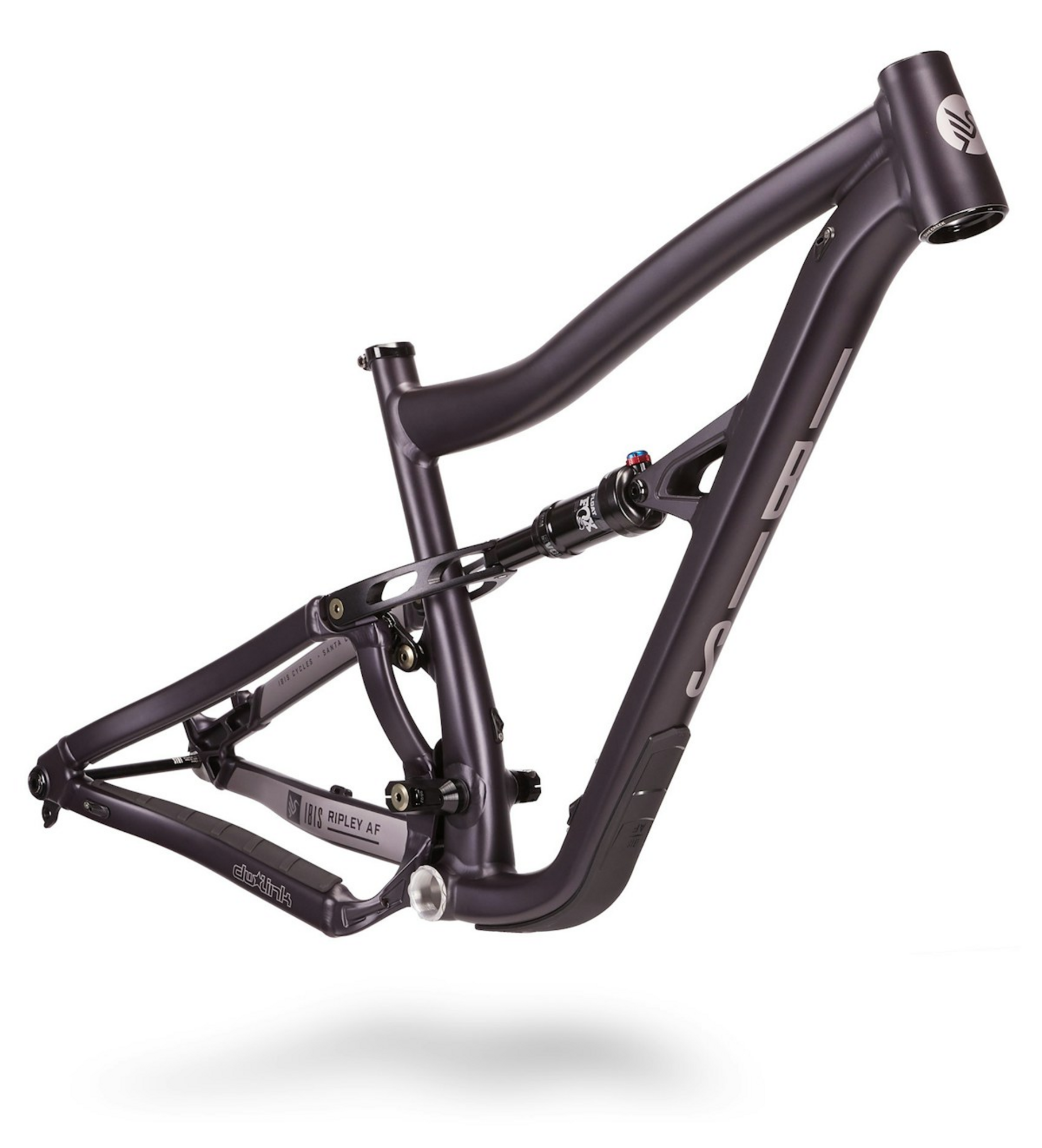

Ibis Ripley AF UDH Frame
$2,199.00
Details
The Ripley AF is our beloved, category-defying, short-travel, singletrack-scorching Ripley - rendered in aluminum, with more aggressive geometry. All the sizzle and pop of the carbon Ripley, now available as a complete bike at a wallet friendly price.
| NOMINAL SIZE | SM | MD | LG | XL |
|---|---|---|---|---|
| Seat Tube Length | 368 | 381 | 418 | 482 |
| Top Tube Length | 574 | 603 | 630 | 658 |
| Head Tube Length (4mm stack of lower cup not included) | 90 | 105 | 115 | 125 |
| Chainstay Length | 432 | 432 | 432 | 432 |
| Seat Tube Angle | 76° | 76° | 76° | 76° |
| Head Tube Angle | 65.5° | 65.5° | 65.5° | 65.5° |
| Wheelbase | 1157 | 1188 | 1217 | 1246 |
| BB Height (with 2.5 Maxxis Minons) | 335 | 335 | 335 | 335 |
| Stack | 599 | 613 | 622 | 631 |
| Reach | 425 | 450 | 475 | 500 |
| Standover | 676 | 703 | 722 | 759 |
| Trail | 120 | 120 | 120 | 120 |
| Saddle height for seat tube angle | 620 | 700 | 750 | 807 |
| S | 5'0"–5' 4" |
|---|---|
| M | 5'3"–5' 8" |
| L | 5'7"-6'1" |
| XL | 6'–6'5" |
Specs
| Pedals | Sold Separately |
|---|---|
| Frame | Ripley AF UDH |
| Rear Shock | Fox Performance Series Float DPS with EVOL, 190mm x 45mm |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Titanium Toaster / X-Large / 29-inch | 810081721653 | RLA4TI0000000 |
| Plum Smash / Small / 29-inch | 810081721585 | RLA1PL0000000 |
| Plum Smash / Large / 29-inch | 810081721622 | RLA3PL0000000 |
| Plum Smash / X-Large / 29-inch | 810081721646 | RLA4PL0000000 |
| Plum Smash / Medium / 29-inch | 810081721608 | RLA2PL0000000 |
| Titanium Toaster / Large / 29-inch | 810081721639 | RLA3TI0000000 |
| Titanium Toaster / Small / 29-inch | 810081721592 | RLA1TI0000000 |
| Titanium Toaster / Medium / 29-inch | 810081721615 | RLA2TI0000000 |
